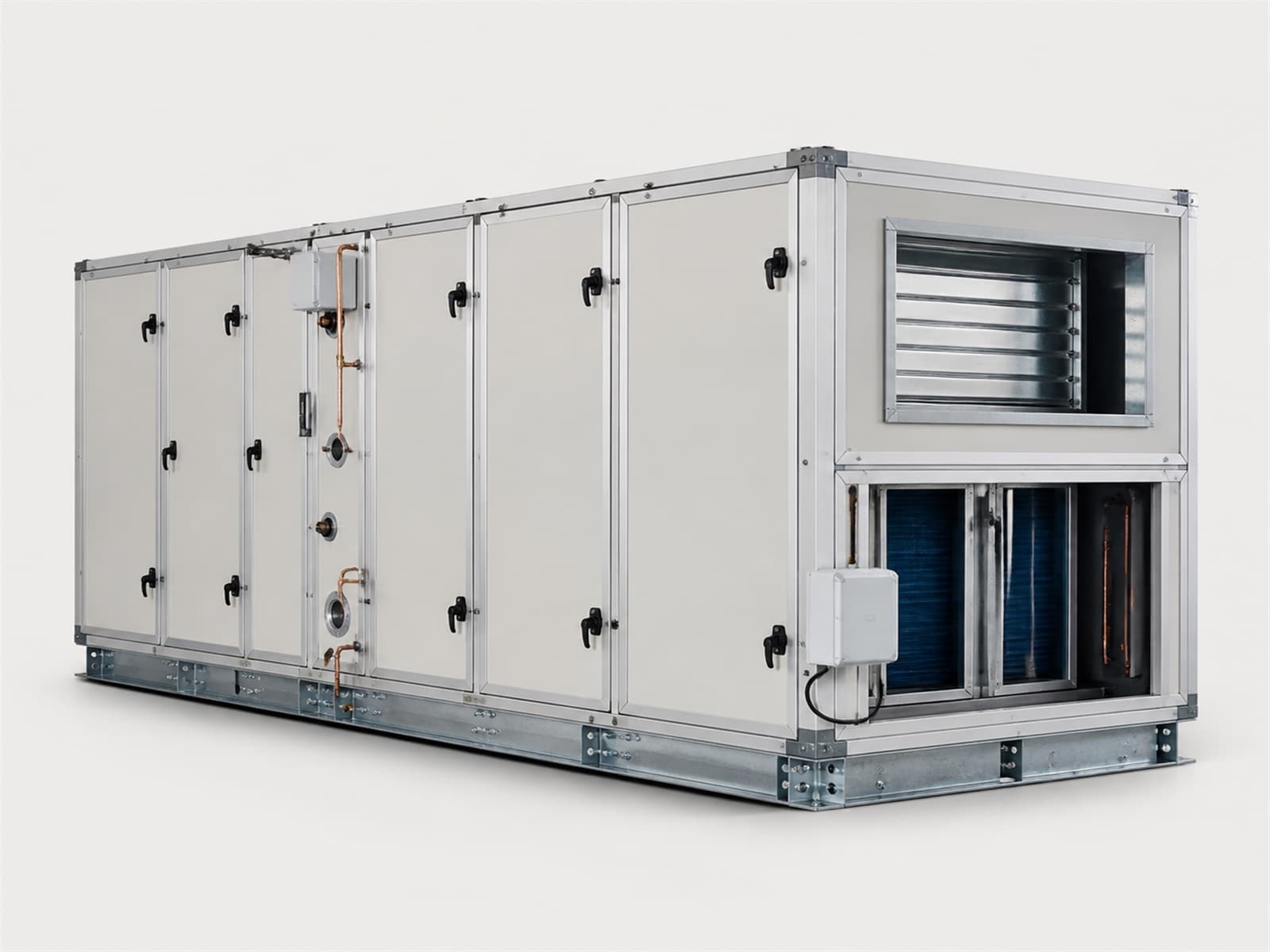

Modular Air Handling Units (AHU)

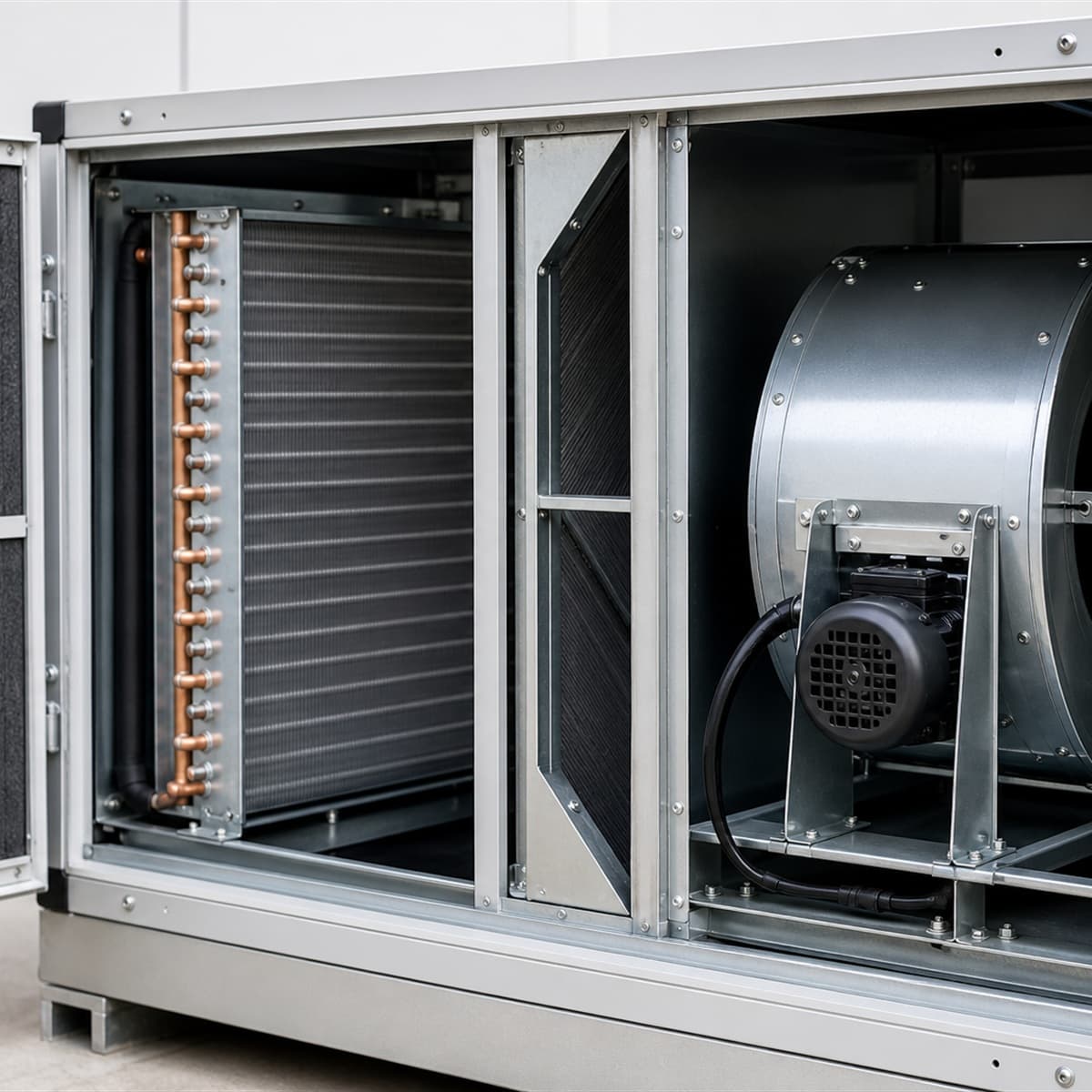

Draw-through / blow-through modular AHUs, double-skin panel construction.
Specifications
Category-typical operating ranges shown below. SKU-specific test data is confirmed during engineering review.
| Parameter | Value |
|---|---|
| Airflow Range | 1,000 – 100,000 m³/h |
| Cooling Capacity | 5 – 500 kW (typical range) |
| External Static Pressure | 150 – 800 Pa |
| Casing Construction | 50mm double-skin panel, PU/rock wool fill |
Performance Curve
Airflow / static pressure performance curve — Pending Verification. Unit-specific test data is issued per confirmed order configuration.
Drawings & Documentation
CAD / dimensional drawing — Pending Verification
Category
Air Handling & Central HVAC
Modular and unitary air handling equipment for central plant and zoned commercial/industrial systems.
